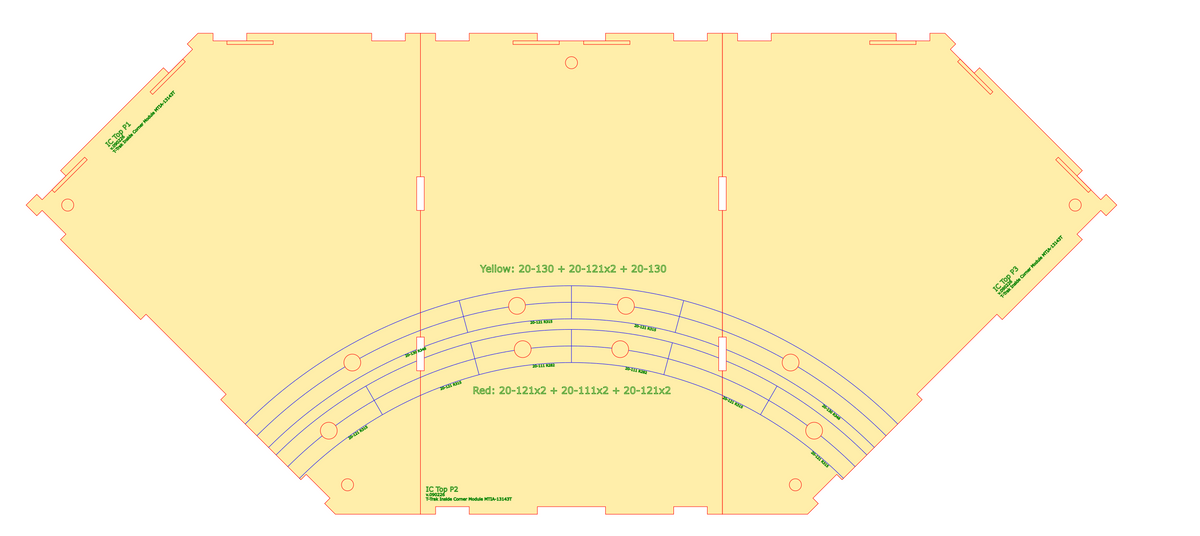

T-TRAK Inside Corner Module, Angled Edges

This part uses the following Kato Unitrak parts:

• Yellow line - 2 x 20-120, 1 x 20-091(S29)
• Red line - 2 x 20-110, 1 x 20-091(S29)

Side Dimensions:

• 13" (331mm) Module ends (connect to adjacent modules)
• 14.17" (360mm) Front face.
• 7.24" (184mm) Short Back sides
• 22.36" (568mm) Back Face

Cut outs:

• Front Face: Digitrax Panel
• Back Face: Anderson 1470G1-BK PowerPole connector

Our Design:

• Included adjustable legs to correctly set module height (from 2 ¾” to 4”)
• Each module is precision-engineered for seamless integration
• Kit boards designed to fit only one way reducing the risk of incorrect assembly
• Interlocking corners make stronger joints and keeps corners square
• ¼” birch plywood adds to the strength yet light-weight for easy transport
• An included skyboard slots into the module providing a removable backdrop that disassembles for easy transport
• Instructive track markings and access holes for easy wiring and assembly

Included in the kit:

• 5 side panels

• 3 top panels that secure together to create the sub-roadbed

• 2 cross braces for a strong module
• 5 adjustable height screw legs
• Assembly manual complete with images of each step
