Connector Kit for 12.4"/15.0" DoubleHelix™

Set of Connector Tiles for the 12.4"/15.0" DoubleHelix™

(This DoubleHelix™ Connector kit is specifically designed to match Kato Unitrack curves with radius 12.4"/315mm and 15.0"/381mm.)

Two sets of connector tiles for the 12.4"/15.0" DoubleHelix™ designed for set-track and flex-track.

These tiles are uniquely designed to connect the inner and outer helix at the bottom and top of the 12.4"/15.0" double helix. This set of tiles can be used for the bottom connector assembly and for the top connector assembly. Tiles are engraved to indicate correct orientation when used in bottom or top connector assembly.

Included in this kit

• 2 Inner Helix Start Tile
• 2 Inner Helix End Tile

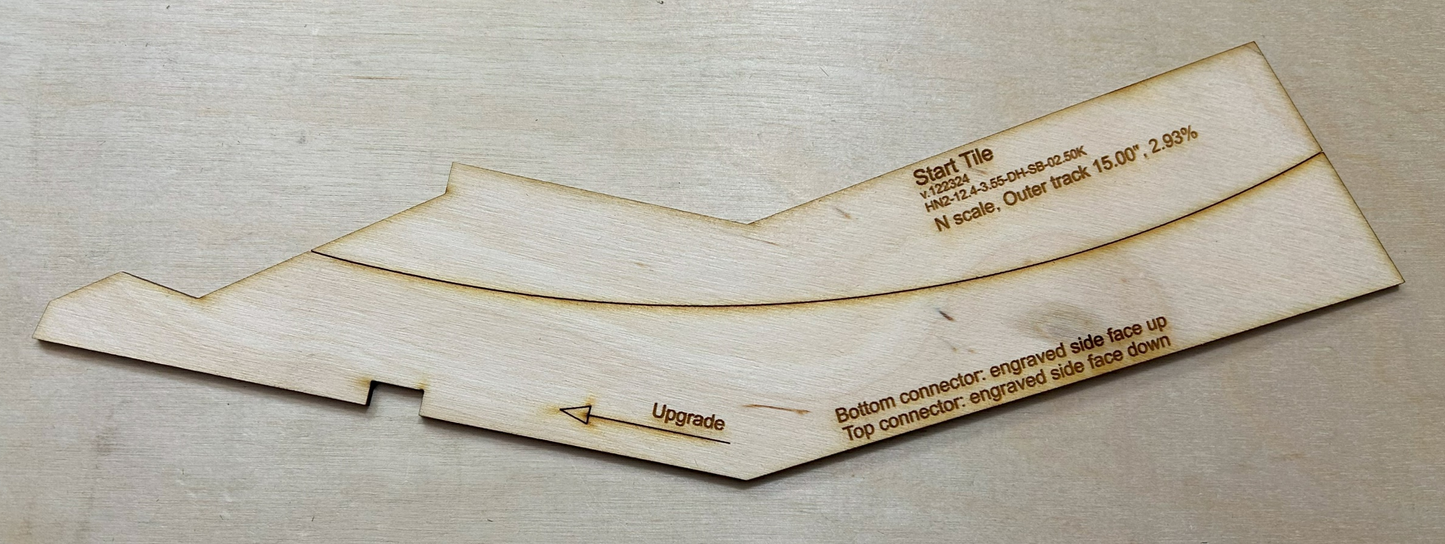

• 2 Outer Helix Start Tile
• 2 Outer Helix End Tile
• 2 Connector Tile

Not included:

• Wood glue
• Track and cork subroadbed

Please note:  We require 10 business days to cut and process your order before it is shipped. We appreciate your patience as we ensure that your items are prepared with craftsmanship and care.
